EC-536R
Gas Shutoff System - 6-Channel Controller
Equipped with the CLNF APD30-15 industrial switching power supply - 30W rated, universal input 100-277VAC, stable DC 15V / 2A output. Powers all six detection and relay channels with clean, regulated DC regardless of mains voltage.

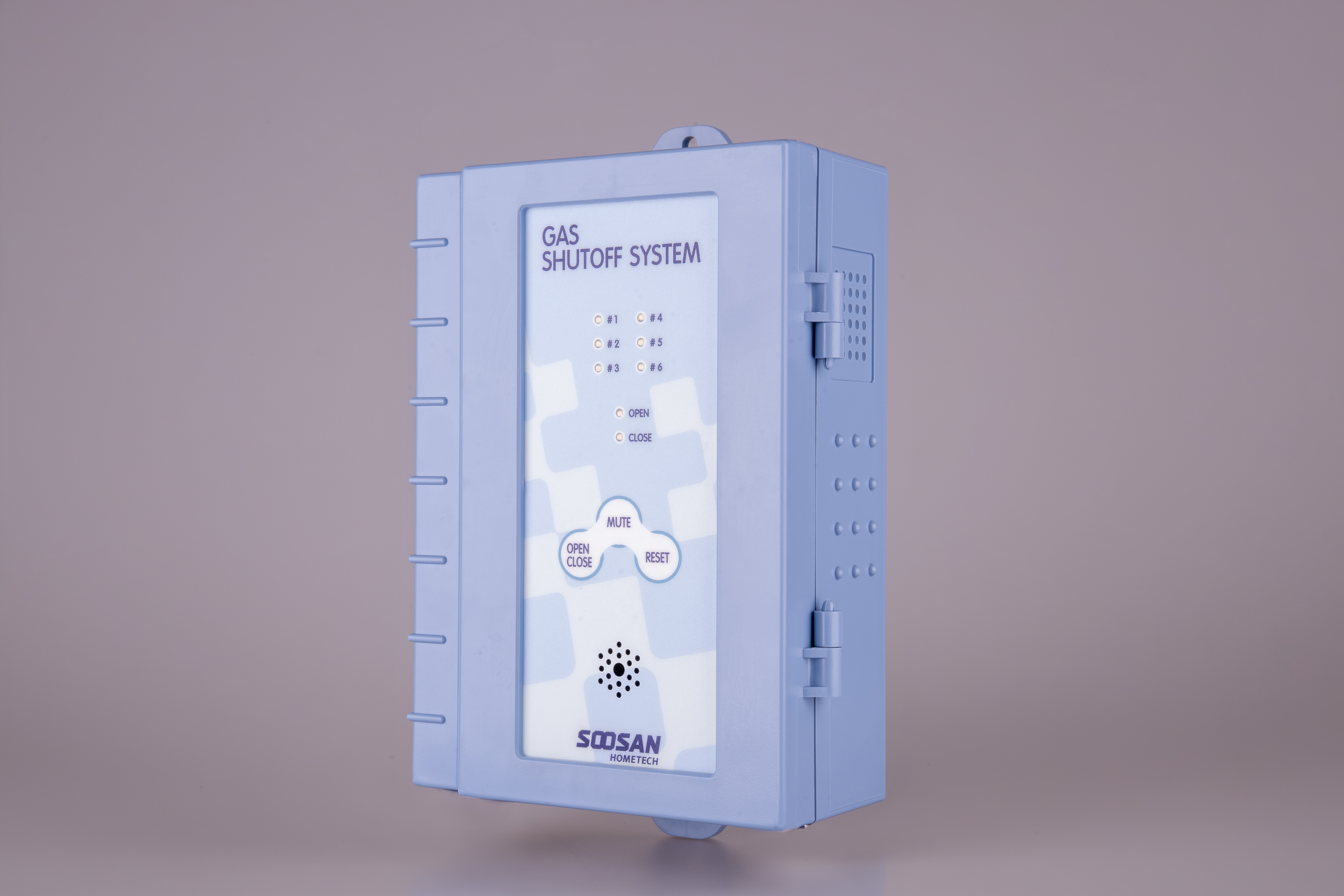

Six-channel gas shutoff controller in a robust hinged ABS enclosure. Six independent dry-contact relay outputs drive gas shut-off valves on a per-zone basis. Dual-column LED layout (#1-#3 left, #4-#6 right) for instant zone identification. Built-in buzzer with front-panel MUTE / OPEN/CLOSE / RESET controls. Operating range -10℃ to 55℃.
- 6× independent dry-contact relay outputs (#1-#6)
- CLNF APD30-15 SMPS - 100-277VAC input, DC 15V/2A
- Dual-column 6-zone LED layout for quick identification
- Built-in buzzer + MUTE / OPEN/CLOSE / RESET buttons

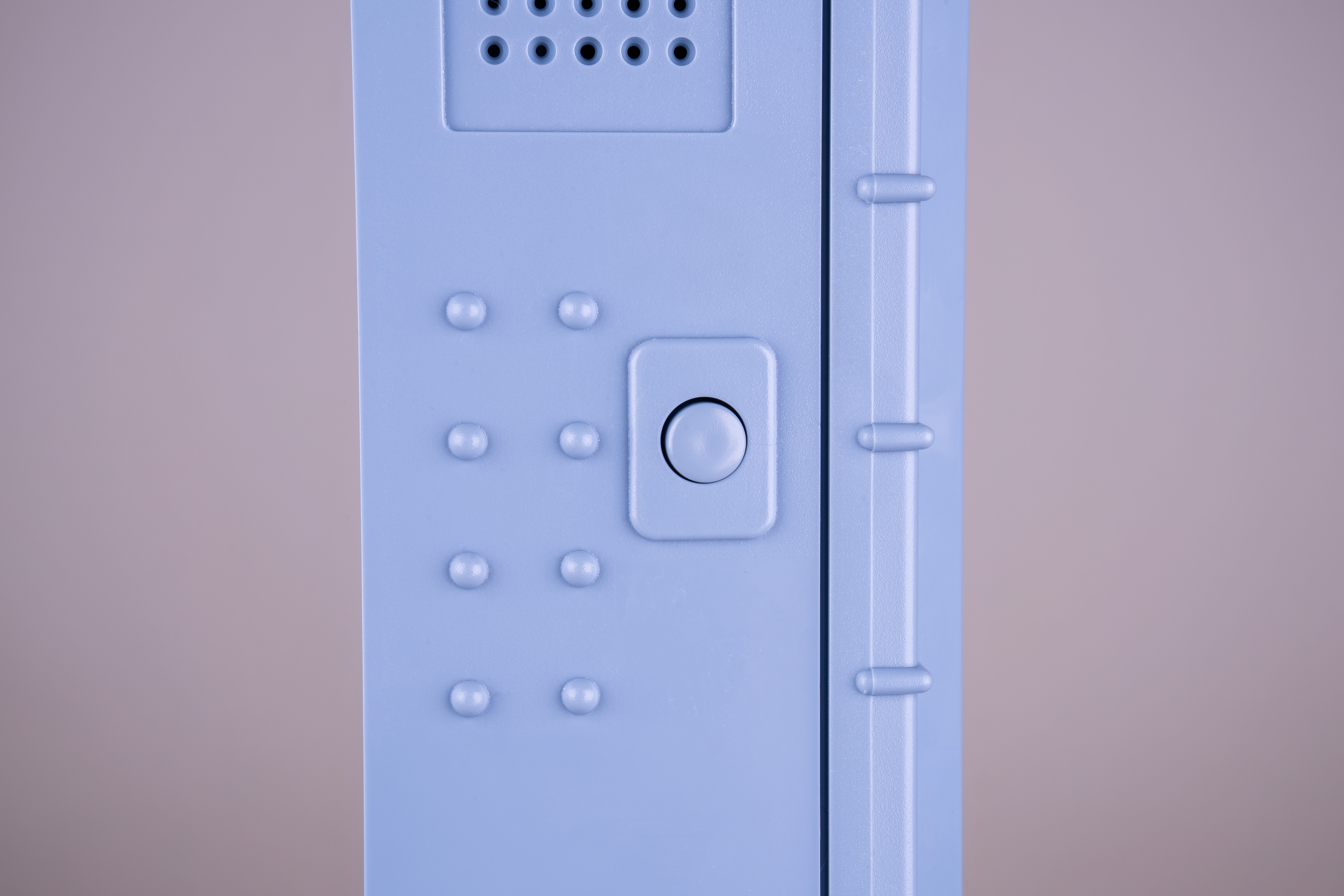

- Hinged ABS enclosure with ventilation grilles
- Operating range -10℃ ~ 55℃, Made in Korea
CLNF APD30-15
Industrial SMPS
The switching power supply inside the EC-536R operates across a universal 100-277VAC input range, converting mains power to stable, low-ripple DC 15V / 2A. This keeps all six sensor and relay circuits clean even under building power fluctuation - critical when running six zones simultaneously.
- Wide-range AC input - compatible with 100V and 220V mains
- High-efficiency switching - less heat, longer service life
- Low output ripple - clean power for all 6 detection channels
- UL / CE / RoHS certified SMPS module

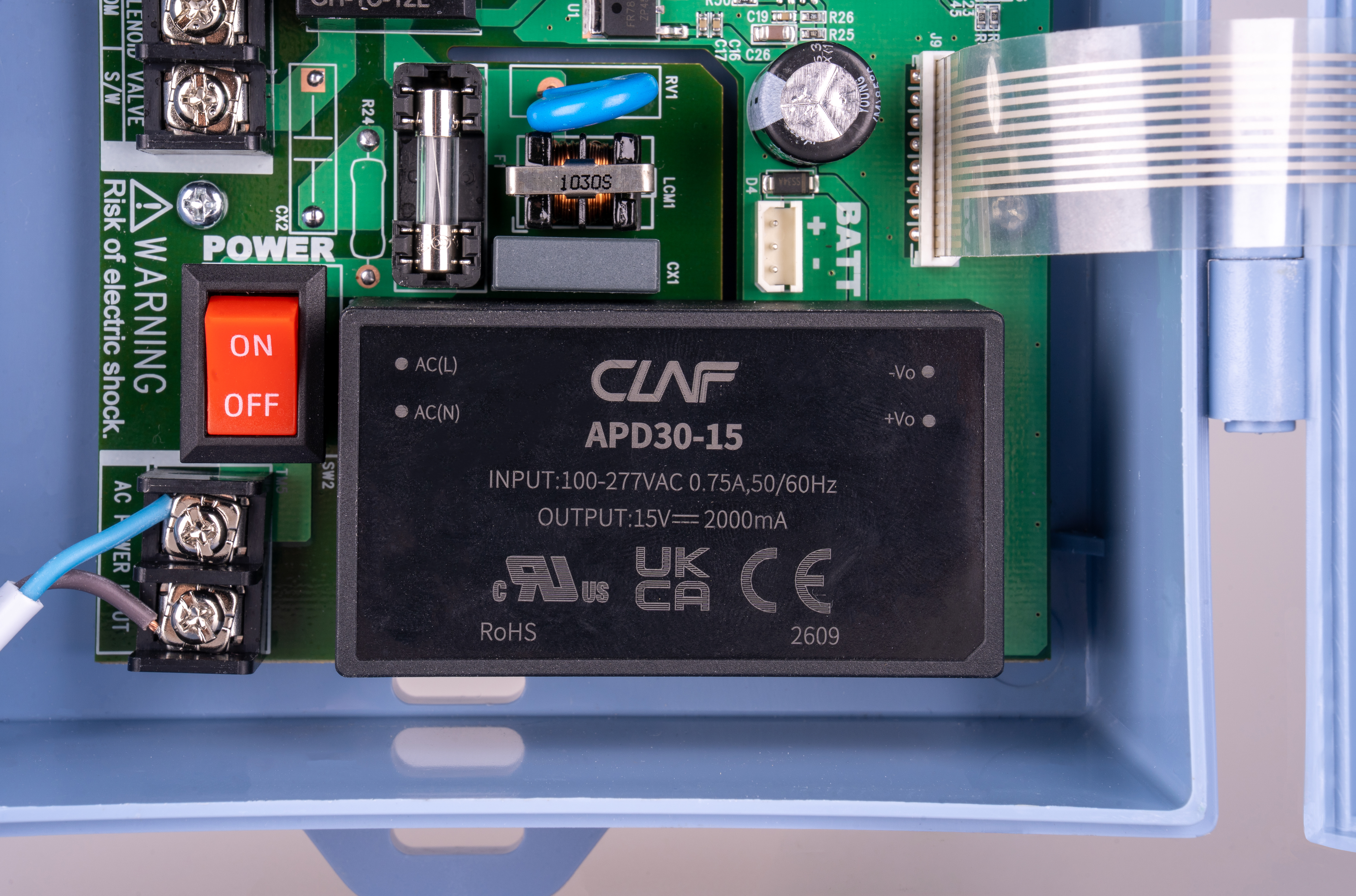

CLNF APD30-15 - INPUT 100-277VAC 0.75A, OUTPUT 15V 2000mA · UL / UK CA / CE / RoHS
EC-536R Specifications
Source: product label · board GC-533/536 REV1.0
Six Zones. One Controller.
Industrial-Grade SMPS
The CLNF APD30-15 switching power supply accepts 100-277VAC worldwide input and delivers a stable DC 15V / 2A output - ensuring clean, regulated power across all six detection channels regardless of mains voltage variation.
6-Channel Independent Control
Six dedicated alarm LEDs arranged in two columns (#1-#3 left, #4-#6 right) and six independent dry-contact relay outputs let each zone be monitored and shut off separately without cross-channel interference.
Audible + Visual Alarm
Built-in piezo buzzer and per-channel LEDs provide immediate on-site alarm. MUTE silences the buzzer while visual indicators stay active for continued status monitoring.
Full Front-Panel Control
OPEN/CLOSE button manually actuates connected valves across all zones. RESET clears latched alarm states. All controls operable without opening the enclosure.
Safety & Installation Warnings
Connect only to AC 220V, 50/60Hz supply. The internal SMPS handles wide-range input (100-277VAC) but must not be connected to DC sources.
All mains wiring to AC input terminals and dry-contact wiring for all 6 channels must be carried out by a licensed electrician with power fully isolated.
Avoid installation locations where steam is in direct contact with the unit or where high moisture is present.
Immediately ventilate the area. Do not operate any electrical switches. Close the manual gas cock and contact emergency services.
EC-536R FAQ
Need the EC-536R for your facility?
Tell us your number of detection zones and valve models - our team will confirm compatibility and provide a project quote.
